Name: NCP380LMU10AATBG
Brand: onsemi
SKU: NCP380LMU10AATBG
Availability: InStock

REF: NCP380LMU10AATBG onsemi

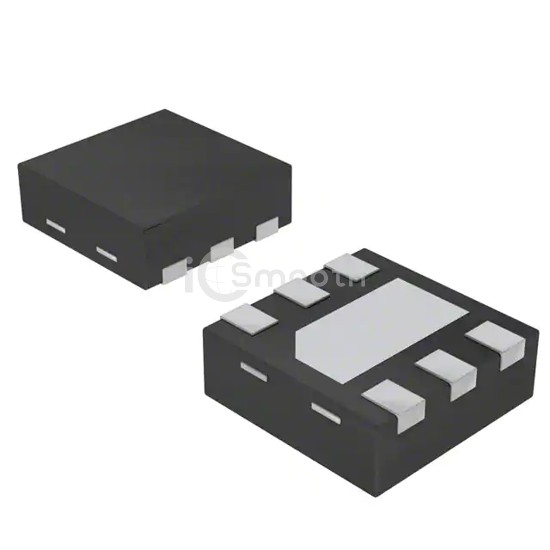

NCP380LMU10AATBG

IC CURRENT LIMIT SWITCH 6-UDFN

NCP380LMU10AATBG is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC CURRENT LIMIT SWITCH 6-UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,489

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1A
Rds On (Typ)	55mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Fixed), UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2x2)
Package / Case	6-UDFN Exposed Pad
