Name: NCP380LMU05AATBG
Brand: onsemi
SKU: NCP380LMU05AATBG
Price: 0.54 USD
Availability: InStock

REF: NCP380LMU05AATBG onsemi

NCP380LMU05AATBG

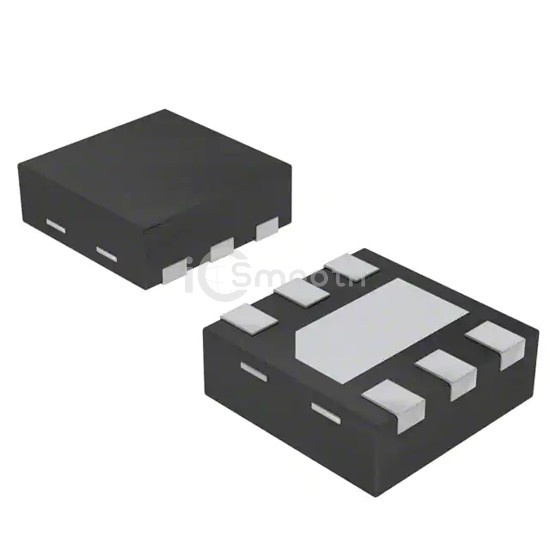

IC PWR SWITCH P-CHAN 1:1 6UDFN

NCP380LMU05AATBG is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH P-CHAN 1:1 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,043

Tiered Pricing USD

1+ $0.5400 —

10+ $0.3770 -30%

25+ $0.3372 -38%

100+ $0.2933 -46%

250+ $0.2724 -50%

500+ $0.2599 -52%

1,000+ $0.2495 -54% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	500mA
Rds On (Typ)	55mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Fixed), UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2x2)
Package / Case	6-UDFN Exposed Pad
