Name: NCP302045MNTWG
Brand: onsemi
SKU: NCP302045MNTWG
Price: 1.92 USD
Availability: InStock

REF: NCP302045MNTWG onsemi

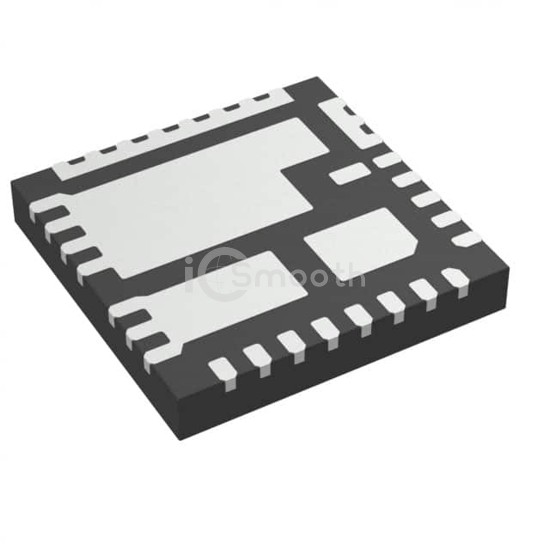

NCP302045MNTWG

IC PWR DRIVER P-CHAN 2:1 31PQFN

NCP302045MNTWG is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR DRIVER P-CHAN 2:1 31PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 9V ~ 15V, package / case 31-PowerWFQFN.

Datasheet Request a Quote

In Stock: 1,739

Tiered Pricing USD

1+ $1.9200 —

10+ $1.4110 -27%

25+ $1.2844 -33%

100+ $1.1457 -40%

250+ $1.0795 -44%

500+ $1.0396 -46%

1,000+ $1.0067 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	2:1
Output Configuration	High Side
Output Type	P-Channel
Interface	PWM
Voltage - Load	2.3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	9V ~ 15V

Current - Output (Max)	5A
Rds On (Typ)	95mOhm
Input Type	Differential
Features	Sleep Mode
Fault Protection	Current Limiting, Over Temperature, UVLO
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	31-PQFN (5x5)
Package / Case	31-PowerWFQFN
