NCP1910A100DWR2G

In Stock: 2,500

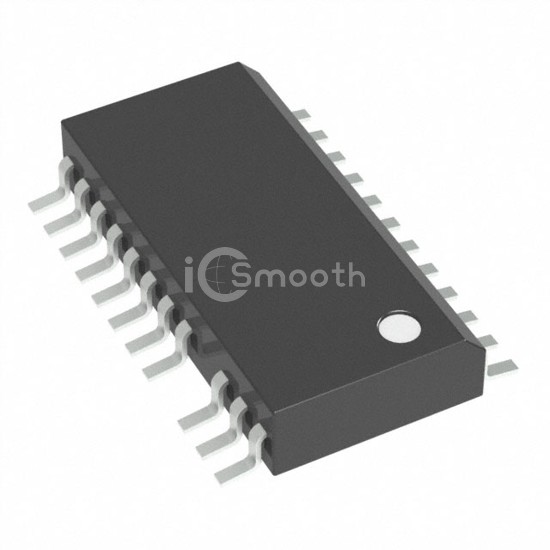

NCP1910A100DWR2G - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: NCP1910A100DWR2G onsemi
NCP1910A100DWR2G

onsemi

IC OFFLINE SW HALF-BRDG 24SOIC

NCP1910A100DWR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 24SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9V ~ 20V, package / case 24-SOIC (0.295", 7.50mm Width), 23 Leads.

Datasheet Request a Quote

In Stock: 2,500

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyHalf-Bridge
Voltage - Start Up10.4 V
Voltage - Supply (Vcc/Vdd)9V ~ 20V
Duty Cycle97%
Frequency - Switching100kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Voltage
Control FeaturesPower Good, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case24-SOIC (0.295", 7.50mm Width), 23 Leads
Supplier Device Package24-SOIC
Mounting TypeSurface Mount
