NCP1399BADR2G

In Stock: 1,378

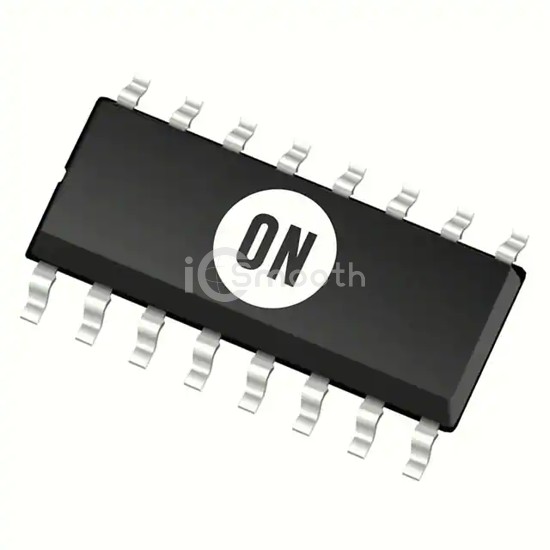

NCP1399BADR2G - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: NCP1399BADR2G onsemi
NCP1399BADR2G

onsemi

IC OFFLINE SW HALF-BRDG 16SOIC

NCP1399BADR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.

Datasheet Request a Quote

In Stock: 1,378

Tiered Pricing USD
1+ $2.0700 —
10+ $1.5310 -26%
25+ $1.3948 -33%
100+ $1.2460 -40%
250+ $1.1749 -43%
500+ $1.1321 -45%
1,000+ $1.0968 -47% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyHalf-Bridge
Voltage - Start Up15.8 V
Voltage - Supply (Vcc/Vdd)9.5V ~ 20V
Duty Cycle50%
Frequency - Switching20kHz ~ 750kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features-
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
