Name: NCP13992AFDR2G
Brand: onsemi
SKU: NCP13992AFDR2G
Price: 2.02 USD
Availability: InStock

REF: NCP13992AFDR2G onsemi

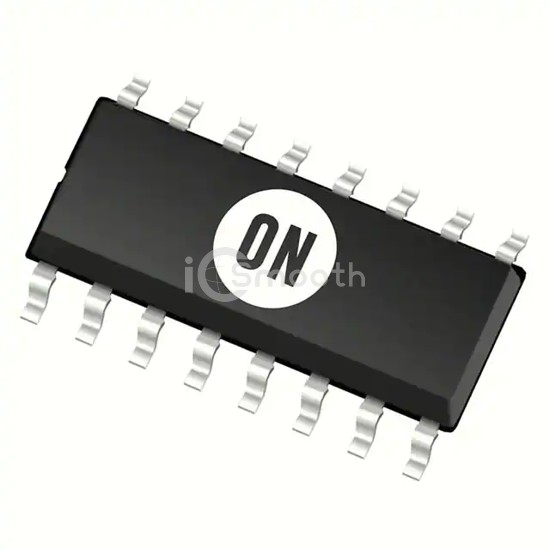

NCP13992AFDR2G

IC OFFLINE SW HALF-BRDG 16SOIC

NCP13992AFDR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.

Datasheet Request a Quote

In Stock: 2,136

Tiered Pricing USD

1+ $2.0200 —

10+ $1.4880 -26%

25+ $1.3556 -33%

100+ $1.2102 -40%

250+ $1.1409 -44%

500+ $1.0991 -46%

1,000+ $1.0647 -47% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Isolated
Internal Switch(s)	No
Voltage - Breakdown	-
Topology	Half-Bridge
Voltage - Start Up	9 V
Voltage - Supply (Vcc/Vdd)	9.5V ~ 20V
Duty Cycle	50%

Frequency - Switching	20kHz ~ 750kHz
Power (Watts)	-
Fault Protection	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features	EN, Frequency Control, Soft Start, Sync
Operating Temperature	-50°C ~ 150°C (TJ)
Package / Case	16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package	16-SOIC
Mounting Type	Surface Mount
