Name: NCP13992AADR2G
Brand: onsemi
SKU: NCP13992AADR2G
Price: 3.05 USD
Availability: InStock

REF: NCP13992AADR2G onsemi

NCP13992AADR2G

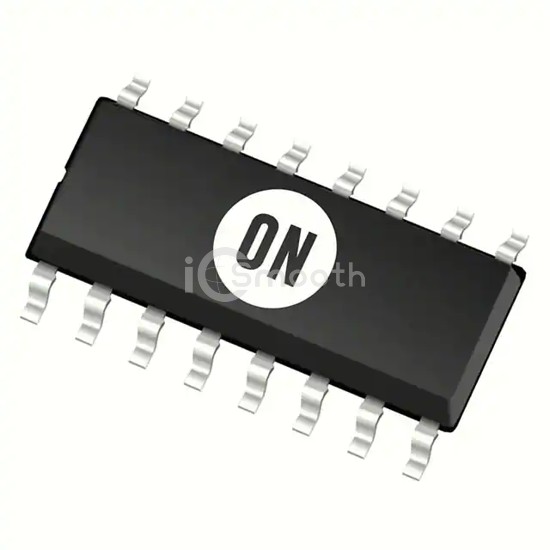

IC OFFLINE SW HALF-BRDG 16SOIC

NCP13992AADR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 20V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.

Datasheet Request a Quote

In Stock: 1,208

Tiered Pricing USD

1+ $3.0500 —

10+ $1.9330 -37%

25+ $1.6420 -46%

100+ $1.3131 -57%

250+ $1.1517 -62%

500+ $1.0523 -65%

1,000+ $0.9691 -68% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Isolated
Internal Switch(s)	No
Voltage - Breakdown	-
Topology	Half-Bridge
Voltage - Start Up	9 V
Voltage - Supply (Vcc/Vdd)	20V
Duty Cycle	50%

Frequency - Switching	20kHz ~ 750kHz
Power (Watts)	-
Fault Protection	Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features	EN, Frequency Control, Soft Start, Sync
Operating Temperature	-50°C ~ 150°C (TJ)
Package / Case	16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package	16-SOIC
Mounting Type	Surface Mount
