NCP1396BDR2G

In Stock: 4,354

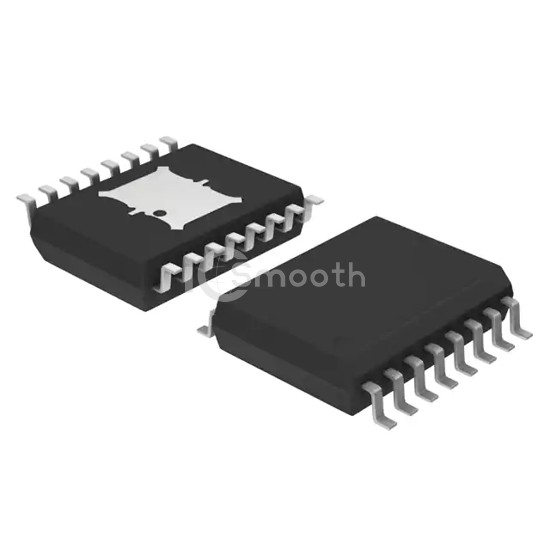

NCP1396BDR2G - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: NCP1396BDR2G onsemi
NCP1396BDR2G

onsemi

IC OFFLINE SW HALF-BRDG 16SOIC

NCP1396BDR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 16-SOIC (0.154", 3.90mm Width), 15 Leads.

Datasheet Request a Quote

In Stock: 4,354

Tiered Pricing USD
1+ $1.5500 —
10+ $1.1290 -27%
25+ $1.0252 -34%
100+ $0.9107 -41%
250+ $0.8561 -45%
500+ $0.8232 -47%
1,000+ $0.7961 -49% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyHalf-Bridge
Voltage - Start Up10.5 V
Voltage - Supply (Vcc/Vdd)9.5V ~ 20V
Duty Cycle50%
Frequency - Switching50kHz ~ 500kHz
Power (Watts)-
Fault ProtectionOver Temperature
Control FeaturesFrequency Control, Soft Start
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width), 15 Leads
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
