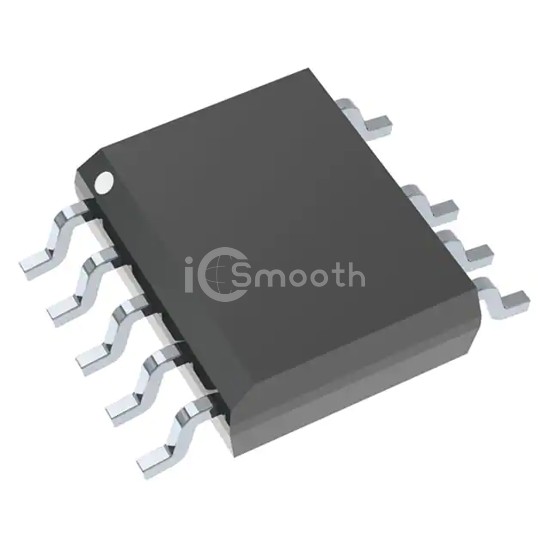

Name: NCP1342ANACCED1R2G
Brand: onsemi
SKU: NCP1342ANACCED1R2G
Price: 1.24 USD
Availability: InStock

REF: NCP1342ANACCED1R2G onsemi

NCP1342ANACCED1R2G

onsemi

HIGH FREQUENCY QUASI-RESONANT FL

NCP1342ANACCED1R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. HIGH FREQUENCY QUASI-RESONANT FL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9V ~ 28V, package / case 10-SOP (0.154", 3.90mm Width), 9 Leads.

Datasheet Request a Quote

In Stock: 5,207

Tiered Pricing USD

1+ $1.2400 —

10+ $0.8990 -28%

25+ $0.8140 -34%

100+ $0.7202 -42%

250+ $0.6755 -46%

500+ $0.6485 -48%

1,000+ $0.6263 -49% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Isolated
Internal Switch(s)	No
Voltage - Breakdown	700V
Topology	Flyback
Voltage - Start Up	17 V
Voltage - Supply (Vcc/Vdd)	9V ~ 28V
Duty Cycle	-

Frequency - Switching	25kHz ~ 500kHz
Power (Watts)	-
Fault Protection	Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features	Frequency Control, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Package / Case	10-SOP (0.154", 3.90mm Width), 9 Leads
Supplier Device Package	9-SOIC
Mounting Type	Surface Mount
