NCP1341B1D1R2G

In Stock: 2,855

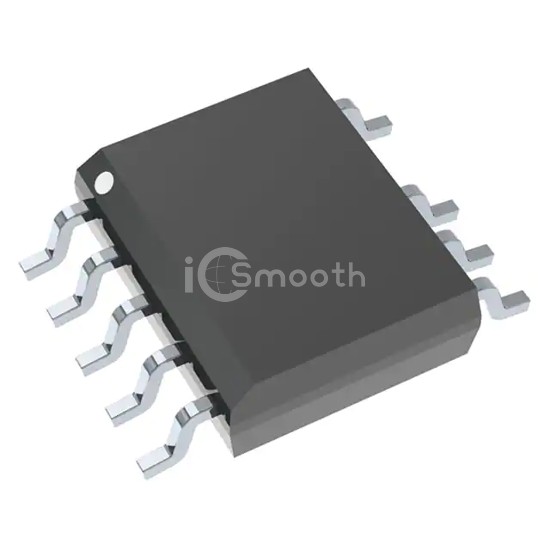

NCP1341B1D1R2G - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: NCP1341B1D1R2G onsemi
NCP1341B1D1R2G

onsemi

IC OFFLINE SWITCH FLYBACK 9SOIC

NCP1341B1D1R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 9SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9V ~ 28V, package / case 10-SOP (0.154", 3.90mm Width), 9 Leads.

Datasheet Request a Quote

In Stock: 2,855

Tiered Pricing USD
1+ $2.0700 —
10+ $1.2870 -38%
25+ $1.0836 -48%
100+ $0.8533 -59%
250+ $0.7401 -64%
500+ $0.6704 -68%
1,000+ $0.6121 -70% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up17 V
Voltage - Supply (Vcc/Vdd)9V ~ 28V
Duty Cycle75%
Frequency - Switching-
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Load, Over Power, Over Temperature, Over Voltage
Control Features-
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case10-SOP (0.154", 3.90mm Width), 9 Leads
Supplier Device Package9-SOIC
Mounting TypeSurface Mount
