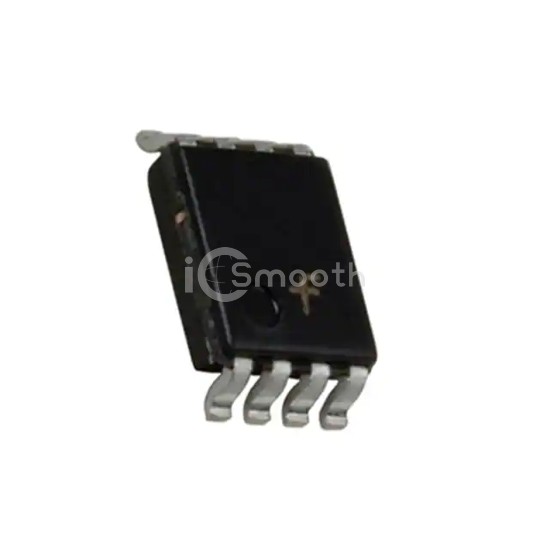

NC7WB66K8X

IC SWITCH DUAL SPST-NO US8

NC7WB66K8X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPST-NO US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 11,480

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	3.2ns, 4.1ns

-3db Bandwidth	300MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-70dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package	US8
