MDB8S

In Stock: 5,284

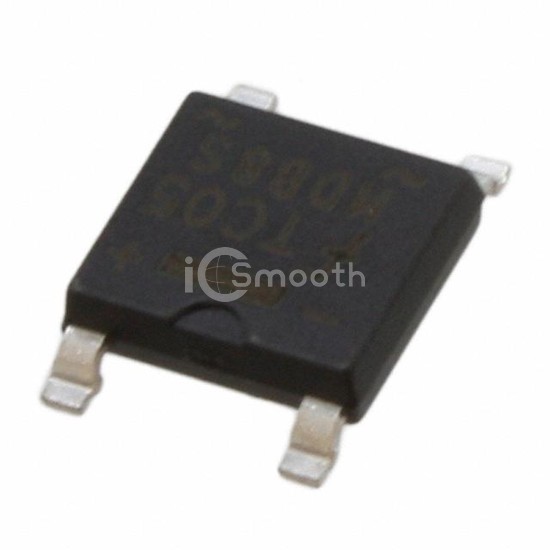

MDB8S - onsemi - Diodes - Bridge Rectifiers
REF: MDB8S onsemi
MDB8S

onsemi

BRIDGE RECT 1P 800V 1MA 4MICRODP

MDB8S is a Diodes - Bridge Rectifiers manufactured by onsemi. BRIDGE RECT 1P 800V 1MA 4MICRODP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,284

Tiered Pricing USD
1+ $0.7800 —
10+ $0.4860 -38%
100+ $0.3136 -60%
500+ $0.2393 -69%
1,000+ $0.2154 -72%
2,000+ $0.1952 -75% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)800 V
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If1.1 V @ 1 A
Current - Reverse Leakage @ Vr10 µA @ 800 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-MicroDIP/SMD
