MDB10S

In Stock: 183,254

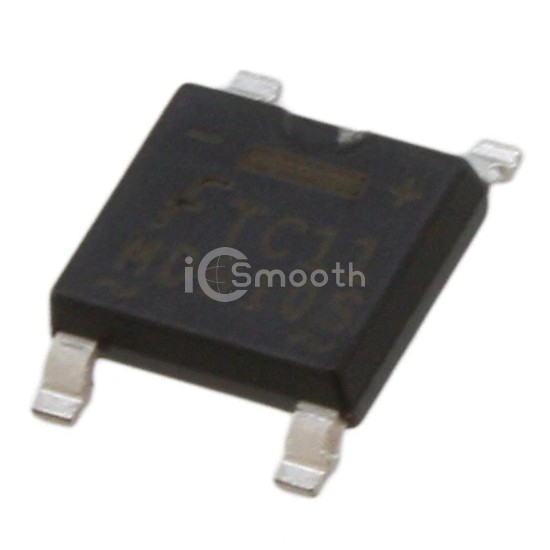

MDB10S - onsemi - Diodes - Bridge Rectifiers
REF: MDB10S onsemi
MDB10S

onsemi

BRIDGE RECT 1PH 1KV 1A 4MICRODIP

MDB10S is a Diodes - Bridge Rectifiers manufactured by onsemi. BRIDGE RECT 1PH 1KV 1A 4MICRODIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 183,254

Tiered Pricing USD
1+ $0.7100 —
10+ $0.4370 -38%
100+ $0.2811 -60%
500+ $0.2137 -70%
1,000+ $0.1919 -73%
2,000+ $0.1736 -76% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)1 kV
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If1.1 V @ 1 A
Current - Reverse Leakage @ Vr10 µA @ 1000 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-MicroDIP/SMD
