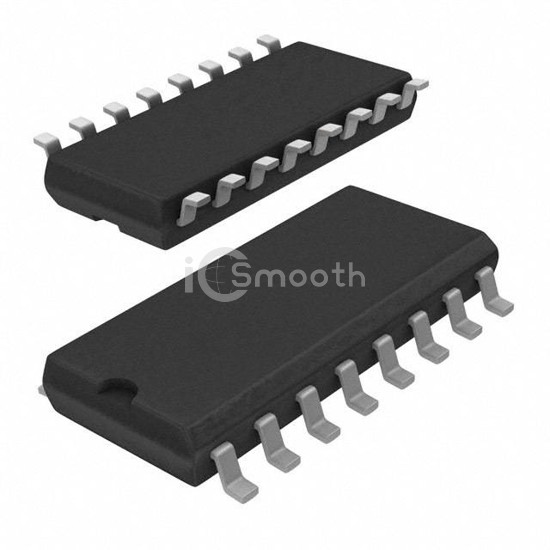

Name: MC74LVX8053MEL
Brand: onsemi
SKU: MC74LVX8053MEL
Price: 0.43 USD
Availability: InStock

REF: MC74LVX8053MEL onsemi

MC74LVX8053MEL

IC MUX/DEMUX TRIPLE 2X1 16SOEIAJ

MC74LVX8053MEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC MUX/DEMUX TRIPLE 2X1 16SOEIAJ. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C (TA), package / case 16-SOIC (0.209", 5.30mm Width), number of circuits 3.

Datasheet Request a Quote

In Stock: 1,116

Tiered Pricing USD

2,000+ $0.4297 —

4,000+ $0.3965 -8%

6,000+ $0.3796 -12%

10,000+ $0.3708 -14% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	25Ohm
Channel-to-Channel Matching (ΔRon)	8Ohm
Voltage - Supply, Single (V+)	2.5V ~ 6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	120MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	10pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-60dB @ 1MHz
Operating Temperature	-55°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package	16-SOEIAJ
