Name: MC74HC4066ANG
Brand: onsemi
SKU: MC74HC4066ANG
Availability: InStock

REF: MC74HC4066ANG onsemi

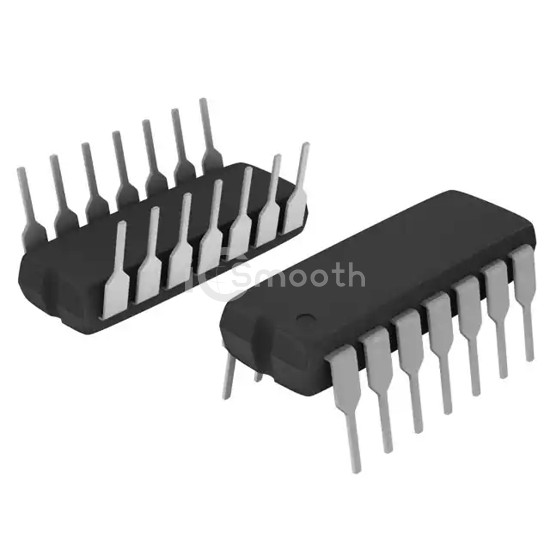

MC74HC4066ANG

IC MUX/DEMUX QUAD 1X1 14DIP

MC74HC4066ANG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC MUX/DEMUX QUAD 1X1 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 14-DIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 9,960

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	70Ohm
Channel-to-Channel Matching (ΔRon)	15Ohm
Voltage - Supply, Single (V+)	2V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	160MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	10pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-80dB @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	14-PDIP
