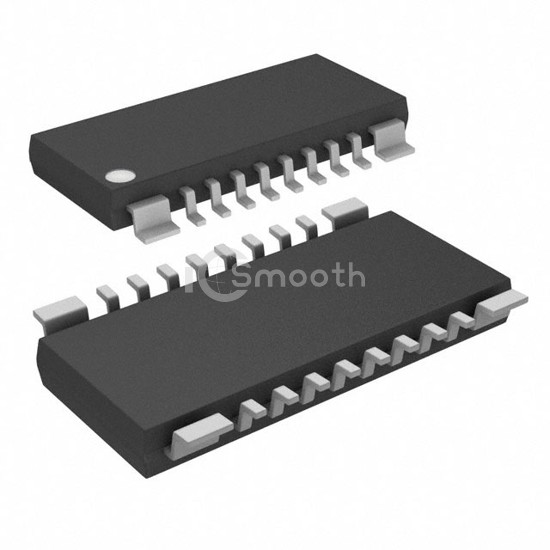

Name: LB1205M-TLM-E
Brand: onsemi
SKU: LB1205M-TLM-E
Price: 1.87 USD
Availability: InStock

REF: LB1205M-TLM-E onsemi

LB1205M-TLM-E

IC PWR DRVR DARLINGTON 1:1 16MFP

LB1205M-TLM-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR DRVR DARLINGTON 1:1 16MFP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - load 3.5V ~ 7V, package / case 16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs.

Datasheet Request a Quote

In Stock: 1,135

Tiered Pricing USD

1+ $1.8700 —

10+ $1.3750 -26%

25+ $1.2512 -33%

100+ $1.1154 -40%

250+ $1.0507 -44%

500+ $1.0116 -46% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	Darlington
Interface	-
Voltage - Load	3.5V ~ 7V
Voltage - Supply (Vcc/Vdd)	-

Current - Output (Max)	1.5A
Rds On (Typ)	-
Input Type	Non-Inverting
Features	-
Fault Protection	-
Operating Temperature	-20°C ~ 75°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	16-MFPFS
Package / Case	16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs
