Name: HCPL2630SM
Brand: onsemi
SKU: HCPL2630SM
Price: 2.26 USD
Availability: InStock

REF: HCPL2630SM onsemi

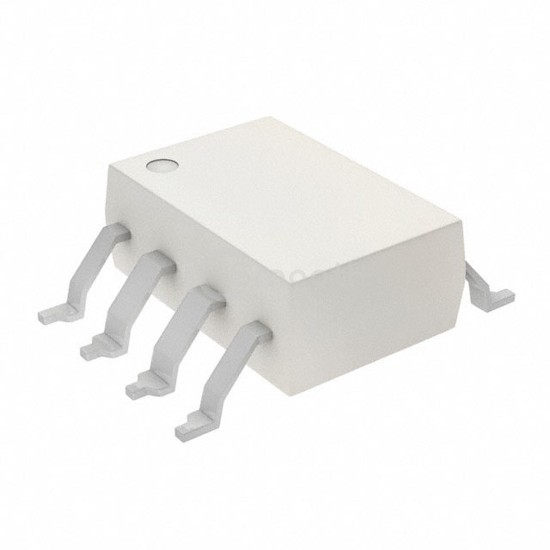

HCPL2630SM

OPTOISO 5KV 2CH OPEN COLL 8SMD

HCPL2630SM is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 5KV 2CH OPEN COLL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 4,493

Tiered Pricing USD

1+ $2.2600 —

10+ $1.6290 -28%

100+ $1.2501 -45%

500+ $1.0831 -52%

1,000+ $1.0286 -54%

2,000+ $0.9825 -57%

5,000+ $0.9322 -59%

10,000+ $0.9009 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	10kV/µs (Typ)
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	25 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	30ns, 10ns
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	30mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
