FSQ510M

In Stock: 1,746

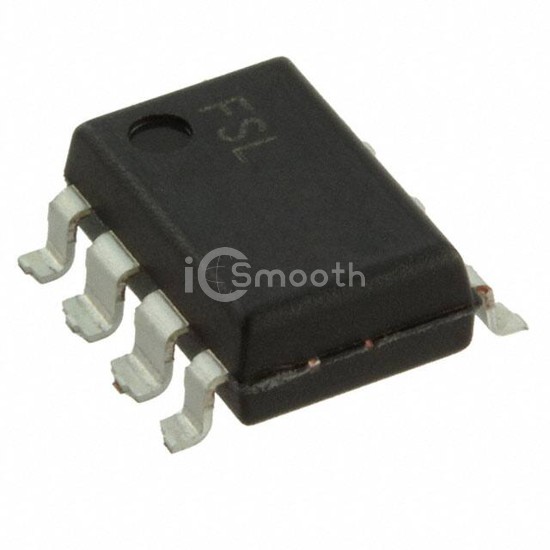

FSQ510M - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: FSQ510M onsemi
FSQ510M

onsemi

IC OFFLINE SWITCH FLYBACK 7LSOP

FSQ510M is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 7LSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 140°C (TJ), voltage - supply (vcc/vdd) 6.7V ~ 20V, package / case 8-SMD (7 Leads), Gull Wing.

Request a Quote

In Stock: 1,746

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown700V
TopologyFlyback
Voltage - Start Up8.7 V
Voltage - Supply (Vcc/Vdd)6.7V ~ 20V
Duty Cycle60%
Frequency - Switching94.3kHz ~ 132kHz
Power (Watts)9 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature
Control FeaturesSync
Operating Temperature-40°C ~ 140°C (TJ)
Package / Case8-SMD (7 Leads), Gull Wing
Supplier Device Package7-LSOP
Mounting TypeSurface Mount
