FSL336LRDN

In Stock: 1,355

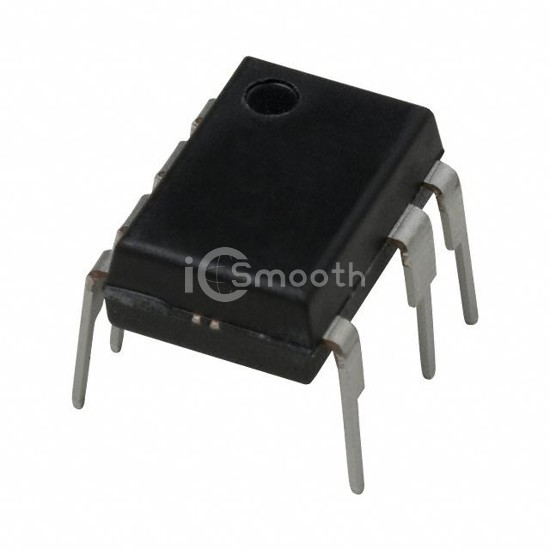

FSL336LRDN - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: FSL336LRDN onsemi
FSL336LRDN

onsemi

IC OFFLINE SWITCH MULT TOP 7DIP

FSL336LRDN is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH MULT TOP 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 26V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 1,355

Specifications

16 parameters
Product StatusObsolete
Output IsolationNon-Isolated
Internal Switch(s)Yes
Voltage - Breakdown650V
TopologyBuck, Buck-Boost, Flyback
Voltage - Start Up8 V
Voltage - Supply (Vcc/Vdd)26V
Duty Cycle-
Frequency - Switching50kHz
Power (Watts)20 W
Fault ProtectionCurrent Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Control FeaturesEN, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package7-DIP
Mounting TypeThrough Hole
