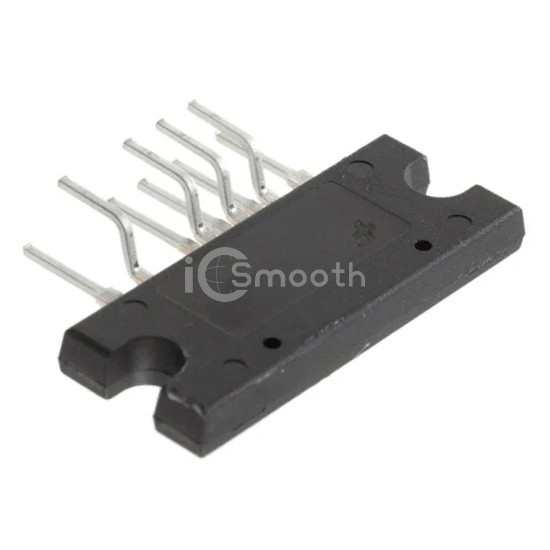

FSFR1800HSL

In Stock: 122
FSFR1800HSL - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: FSFR1800HSL onsemi
FSFR1800HSL

onsemi

IC OFFLINE SW HALF-BRIDGE 9SIP

FSFR1800HSL is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRIDGE 9SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C (TJ), voltage - supply (vcc/vdd) 10V ~ 25V, package / case 10-SIP Module, 9 Leads, Formed Leads.

Datasheet Request a Quote

In Stock: 122

Tiered Pricing USD
1+ $3.0200 —
19+ $2.1263 -30% BEST

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown500V
TopologyHalf-Bridge
Voltage - Start Up12.5 V
Voltage - Supply (Vcc/Vdd)10V ~ 25V
Duty Cycle50%
Frequency - SwitchingUp to 600kHz
Power (Watts)260 W
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
Control FeaturesFrequency Control
Operating Temperature-40°C ~ 130°C (TJ)
Package / Case10-SIP Module, 9 Leads, Formed Leads
Supplier Device Package9-SIP (L forming)
Mounting TypeThrough Hole
