Name: FSA2467UMX
Brand: onsemi
SKU: FSA2467UMX
Availability: InStock

REF: FSA2467UMX onsemi

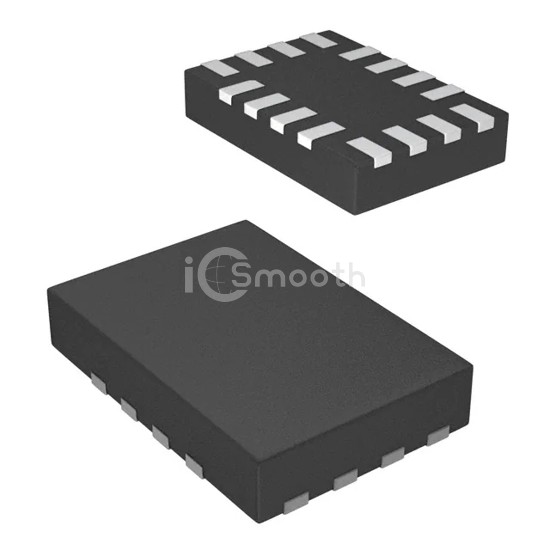

FSA2467UMX

IC SWITCH DUAL DPDT 16UMLP

FSA2467UMX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16UMLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,759

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	400Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	40mOhm (Min)
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 32ns

-3db Bandwidth	85MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	32pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-75dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-UMLP (1.8x2.6)
