Name: FSA2259UMX
Brand: onsemi
SKU: FSA2259UMX
Price: 0.60 USD
Availability: InStock

REF: FSA2259UMX onsemi

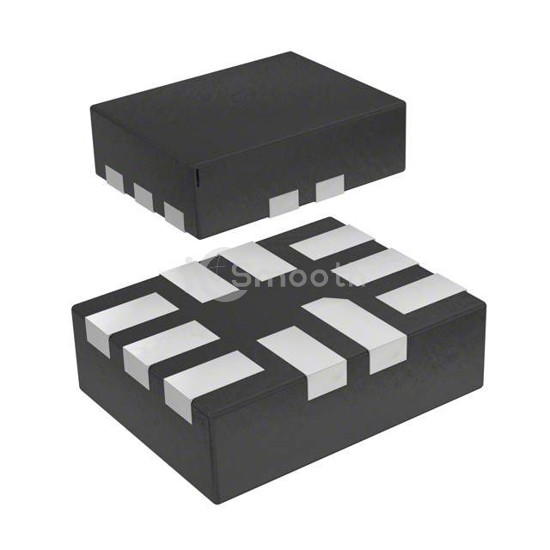

FSA2259UMX

IC SWITCH DUAL SPDT 10UMLP

FSA2259UMX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10UMLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,378

Specifications

18 parameters

Product Status	Last Time Buy
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	80mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.4V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	50MHz
Charge Injection	25pC
Channel Capacitance (CS(off), CD(off))	30pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-100dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UMLP (1.8x1.4)
