Name: FSA2258L10X
Brand: onsemi
SKU: FSA2258L10X
Price: 0.82 USD
Availability: InStock

REF: FSA2258L10X onsemi

FSA2258L10X

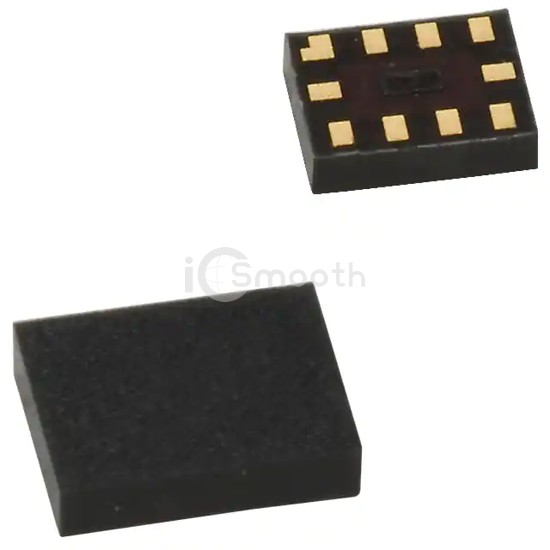

IC SWITCH DUAL SPDT 10MICROPAK

FSA2258L10X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 27,029

Tiered Pricing USD

1+ $0.8200 —

10+ $0.5870 -28%

25+ $0.5288 -36%

100+ $0.4640 -43%

250+ $0.4331 -47%

500+ $0.4145 -49%

1,000+ $0.3992 -51%

2,500+ $0.3831 -53% BEST

Specifications

18 parameters

Product Status	Last Time Buy
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	80mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	50MHz
Charge Injection	25pC
Channel Capacitance (CS(off), CD(off))	3.3pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-100dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN Exposed Pad
Supplier Device Package	10-MicroPak™
