Name: FSA1259AK8X
Brand: onsemi
SKU: FSA1259AK8X
Price: 0.82 USD
Availability: InStock

REF: FSA1259AK8X onsemi

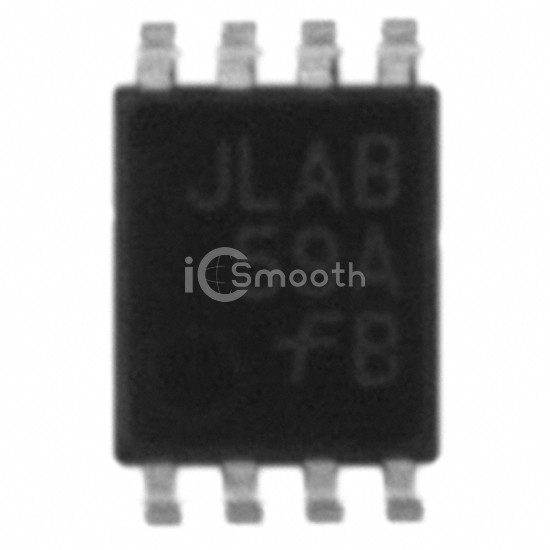

FSA1259AK8X

IC SWITCH DUAL SPST US8

FSA1259AK8X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPST US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 6,641

Tiered Pricing USD

1+ $0.8200 —

10+ $0.5890 -28%

25+ $0.5300 -35%

100+ $0.4651 -43%

250+ $0.4342 -47%

500+ $0.4156 -49%

1,000+ $0.4002 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	850mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	7.5ns, 17ns

-3db Bandwidth	240MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	21pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-73dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package	US8
