Name: FSA1257L8X
Brand: onsemi
SKU: FSA1257L8X
Price: 0.58 USD
Availability: InStock

REF: FSA1257L8X onsemi

FSA1257L8X

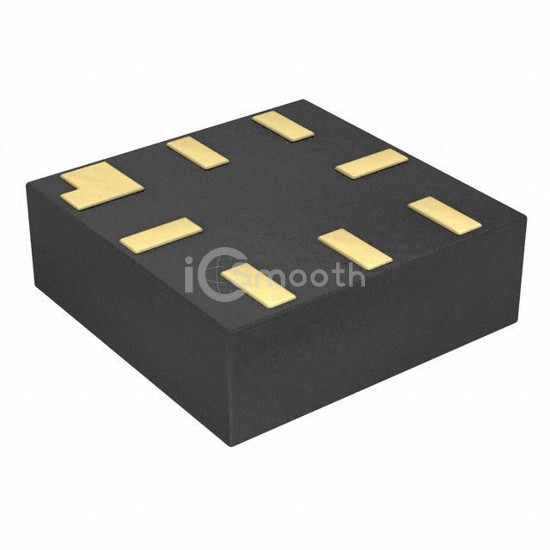

IC SWITCH DUAL SPST 8MICROPAK

FSA1257L8X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPST 8MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,277

Tiered Pricing USD

1+ $0.5800 —

10+ $0.4060 -30%

25+ $0.3636 -37%

100+ $0.3168 -45%

250+ $0.2945 -49%

500+ $0.2810 -52%

1,000+ $0.2700 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	1.15Ohm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 15ns

-3db Bandwidth	300MHz
Charge Injection	20pC
Channel Capacitance (CS(off), CD(off))	11.5pF
Current - Leakage (IS(off)) (Max)	2nA (Typ)
Crosstalk	-100dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFQFN
Supplier Device Package	8-MicroPak™
