Name: FSA1153UCX
Brand: onsemi
SKU: FSA1153UCX
Price: 0.90 USD
Availability: InStock

REF: FSA1153UCX onsemi

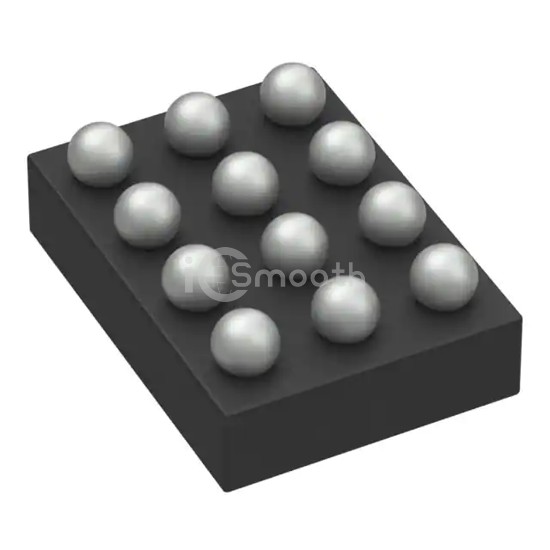

FSA1153UCX

IC SWITCH DP3T SINGLE 12WLCSP

FSA1153UCX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DP3T SINGLE 12WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, WLCSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,257

Tiered Pricing USD

1+ $0.9000 —

10+ $0.6480 -28%

25+ $0.5840 -35%

100+ $0.5135 -43%

250+ $0.4799 -47%

500+ $0.4596 -49%

1,000+ $0.4582 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DP3T
Multiplexer/Demultiplexer Circuit	-
Number of Circuits	1
On-State Resistance (Max)	2Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm (Max)
Voltage - Supply, Single (V+)	2.7V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	80µs, 400ns (Typ)

-3db Bandwidth	500MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	2.5pF, 7pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-120dB @ 1kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, WLCSP
Supplier Device Package	12-WLCSP (1.41x1.575)
