Name: FODM8071R2
Brand: onsemi
SKU: FODM8071R2
Price: 3.26 USD
Availability: InStock

REF: FODM8071R2 onsemi

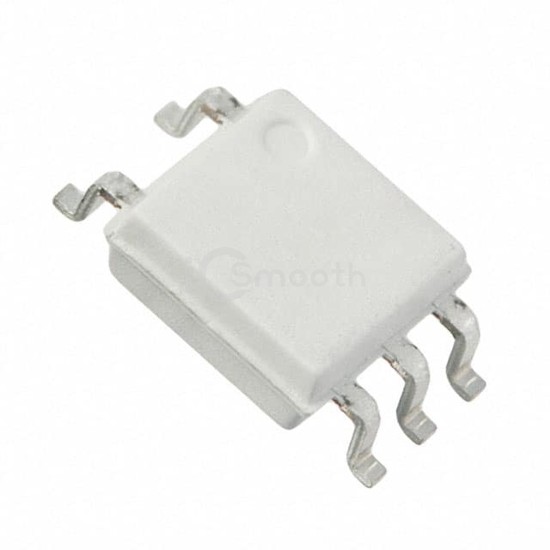

FODM8071R2

OPTOISO 3.75KV PUSH PULL 5MFP

FODM8071R2 is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 3.75KV PUSH PULL 5MFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - supply 3V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 3,901

Tiered Pricing USD

1+ $3.2600 —

10+ $2.3780 -27%

100+ $1.8572 -43%

500+ $1.6285 -50%

1,000+ $1.5556 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	20Mbps

Propagation Delay tpLH / tpHL (Max)	55ns, 55ns
Rise / Fall Time (Typ)	5.8ns, 5.3ns
Voltage - Forward (Vf) (Typ)	1.35V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-Mini-Flat
