Name: FODM611
Brand: onsemi
SKU: FODM611
Price: 1.90 USD
Availability: InStock

REF: FODM611 onsemi

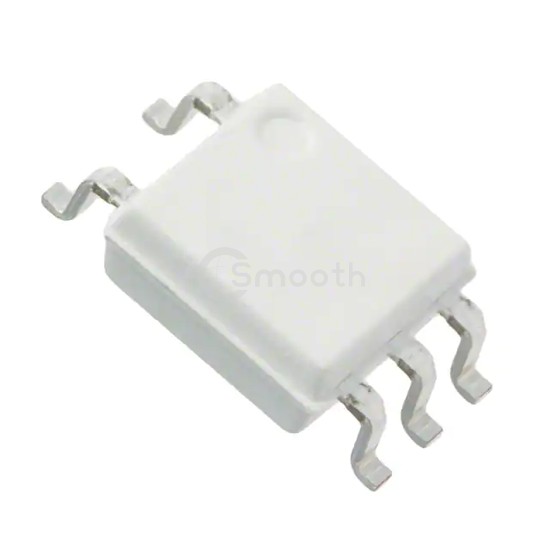

FODM611

OPTOISO 3.75KV OPEN COLL 5MFP

FODM611 is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 3.75KV OPEN COLL 5MFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 6,619

Tiered Pricing USD

1+ $1.9000 —

10+ $1.3580 -29%

100+ $1.0331 -46%

500+ $0.8898 -53%

1,000+ $0.8430 -56%

2,000+ $0.8034 -58%

5,000+ $0.7602 -60%

10,000+ $0.7333 -61% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	20ns, 10ns
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	50mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-Mini-Flat
