Name: FOD8173T
Brand: onsemi
SKU: FOD8173T
Price: 1.70 USD
Availability: InStock

REF: FOD8173T onsemi

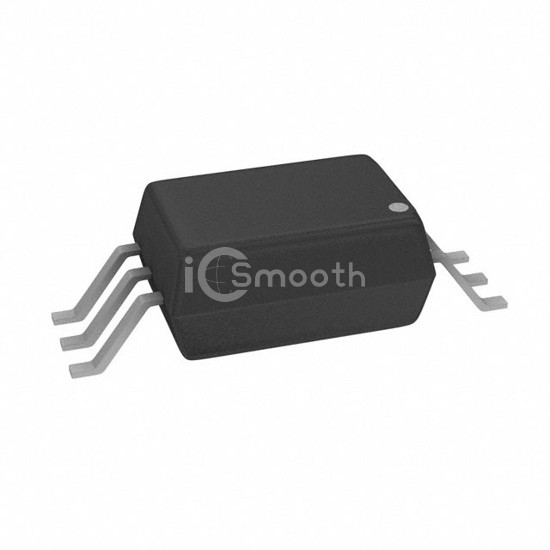

FOD8173T

SSO6 3.3V 10MB WL

FOD8173T is a Optoisolators - Logic Output manufactured by onsemi. SSO6 3.3V 10MB WL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 3V ~ 5.5V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 5,273

Tiered Pricing USD

1+ $1.7000 —

10+ $1.2130 -29%

100+ $0.9179 -46%

500+ $0.7876 -54%

1,000+ $0.7451 -56%

2,000+ $0.7090 -58%

6,000+ $0.6629 -61%

10,000+ $0.6452 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	20Mbps

Propagation Delay tpLH / tpHL (Max)	55ns, 55ns
Rise / Fall Time (Typ)	7ns, 7ns
Voltage - Forward (Vf) (Typ)	1.35V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SOP
