Name: FOD8160
Brand: onsemi
SKU: FOD8160
Price: 4.11 USD
Availability: InStock

REF: FOD8160 onsemi

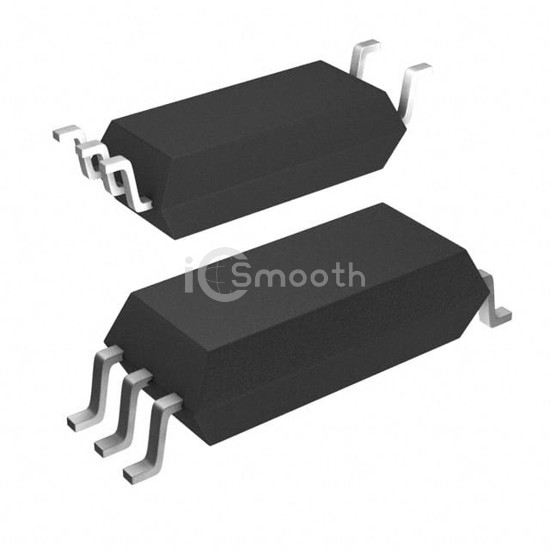

FOD8160

OPTOISO 5KV OPEN COLLECTOR 5SOP

FOD8160 is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 5KV OPEN COLLECTOR 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 3V ~ 5.5V, package / case 6-SOIC (0.362", 9.20mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 2,977

Tiered Pricing USD

1+ $4.1100 —

10+ $3.0350 -26%

100+ $2.3971 -42%

500+ $2.1175 -48%

1,000+ $2.0266 -51%

2,000+ $1.9497 -53%

5,000+ $1.8659 -55% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	90ns, 80ns
Rise / Fall Time (Typ)	22ns, 9ns
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.362", 9.20mm Width), 5 Leads
Supplier Device Package	5-SOP
