FAN7601G

In Stock: 1,654

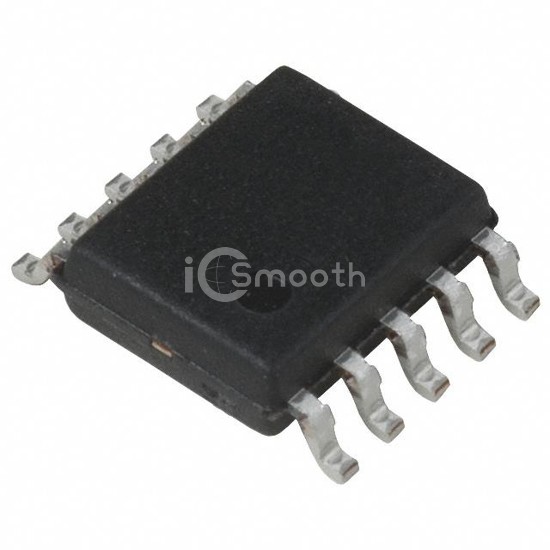

FAN7601G - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: FAN7601G onsemi
FAN7601G

onsemi

IC OFFLINE SWITCH FLYBACK 10SSOP

FAN7601G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 10SSOP. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TA), voltage - supply (vcc/vdd) 8V ~ 20V, package / case 10-SOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,654

Specifications

16 parameters
Product StatusObsolete
Output Isolation-
Internal Switch(s)Yes
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up12 V
Voltage - Supply (Vcc/Vdd)8V ~ 20V
Duty Cycle95%
Frequency - SwitchingUp to 300kHz
Power (Watts)-
Fault ProtectionOver Temperature, Over Voltage
Control FeaturesFrequency Control, Soft Start
Operating Temperature-25°C ~ 125°C (TA)
Package / Case10-SOP (0.154", 3.90mm Width)
Supplier Device Package10-SSOP
Mounting TypeSurface Mount
