FAN604PMX

In Stock: 9,561
FAN604PMX - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: FAN604PMX onsemi
FAN604PMX

onsemi

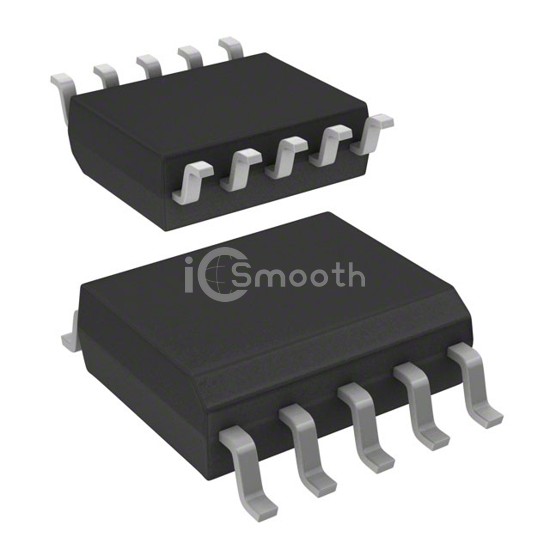

IC OFFLINE SWITCH FLYBACK 10SOIC

FAN604PMX is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 10SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6V ~ 25V, package / case 10-SOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,561

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up17.2 V
Voltage - Supply (Vcc/Vdd)6V ~ 25V
Duty Cycle-
Frequency - Switching25kHz ~ 130kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
Control FeaturesEN
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case10-SOP (0.154", 3.90mm Width)
Supplier Device Package10-SOIC
Mounting TypeSurface Mount
