DFB2560

In Stock: 3,128

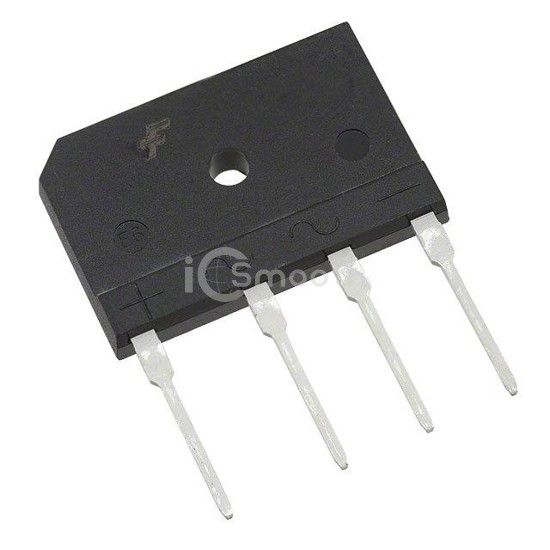

DFB2560 - onsemi - Diodes - Bridge Rectifiers
REF: DFB2560 onsemi
DFB2560

onsemi

BRIDGE RECT 1PHASE 600V 25A TS6P

DFB2560 is a Diodes - Bridge Rectifiers manufactured by onsemi. BRIDGE RECT 1PHASE 600V 25A TS6P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 4-SIP, TS-6P.

Datasheet Request a Quote

In Stock: 3,128

Tiered Pricing USD
1+ $4.3700 —
15+ $2.6980 -38%
105+ $2.0248 -54%
510+ $1.6734 -62%
1,005+ $1.5604 -64%
2,010+ $1.5279 -65% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)600 V
Current - Average Rectified (Io)25 A
Voltage - Forward (Vf) (Max) @ If1.1 V @ 25 A
Current - Reverse Leakage @ Vr10 µA @ 600 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case4-SIP, TS-6P
Supplier Device PackageTS-6P
