Name: CS8240YTQVA5
Brand: onsemi
SKU: CS8240YTQVA5
Price: 3.04 USD
Availability: InStock

REF: CS8240YTQVA5 onsemi

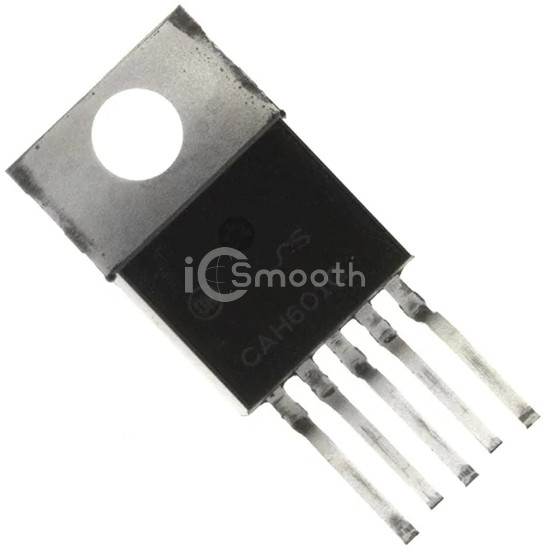

CS8240YTQVA5

IC PWR DRVR BIPOLAR 1:1 TO220-5

CS8240YTQVA5 is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR DRVR BIPOLAR 1:1 TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-220-5 Formed Leads.

Datasheet Request a Quote

In Stock: 2,982

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	Bipolar
Interface	On/Off
Voltage - Load	6V ~ 26V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	550mA
Rds On (Typ)	-
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-5
Package / Case	TO-220-5 Formed Leads
