Name: 6N137TSR2VM
Brand: onsemi
SKU: 6N137TSR2VM
Price: 2.25 USD
Availability: InStock

REF: 6N137TSR2VM onsemi

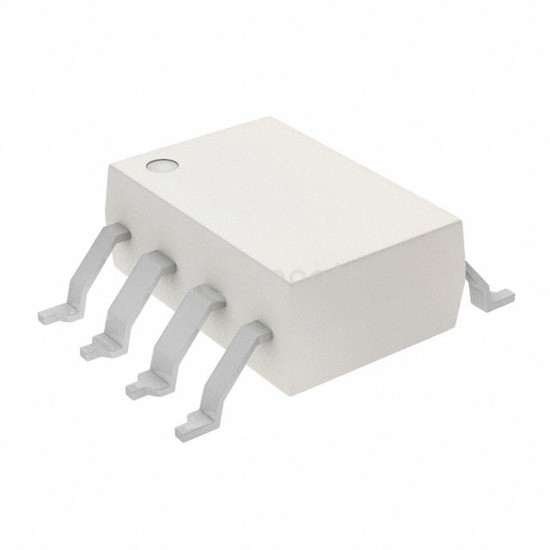

6N137TSR2VM

OPTOISO 5KV 1CH OPEN COLL 8SMD

6N137TSR2VM is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 5KV 1CH OPEN COLL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,718

Tiered Pricing USD

1+ $2.2500 —

10+ $1.6190 -28%

100+ $1.2417 -45% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	10kV/µs (Typ)
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	30ns, 10ns
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	50mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
