3N247

In Stock: 9,743

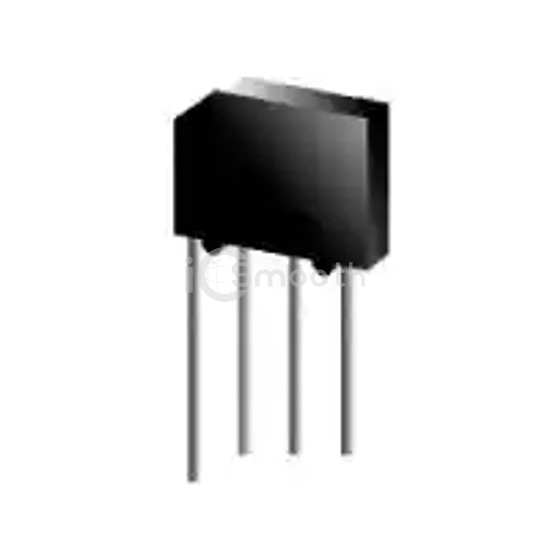

3N247 - onsemi - Diodes - Bridge Rectifiers
REF: 3N247 onsemi
3N247

onsemi

BRIDGE RECT 1P 100V 1.5A KBPM

3N247 is a Diodes - Bridge Rectifiers manufactured by onsemi. BRIDGE RECT 1P 100V 1.5A KBPM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 165°C (TJ), package / case 4-SIP, KBPM.

Datasheet Request a Quote

In Stock: 9,743

Specifications

11 parameters
Product StatusObsolete
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)100 V
Current - Average Rectified (Io)1.5 A
Voltage - Forward (Vf) (Max) @ If1 V @ 1 A
Current - Reverse Leakage @ Vr5 µA @ 100 V
Operating Temperature-55°C ~ 165°C (TJ)
Mounting TypeThrough Hole
Package / Case4-SIP, KBPM
Supplier Device PackageKBPM
