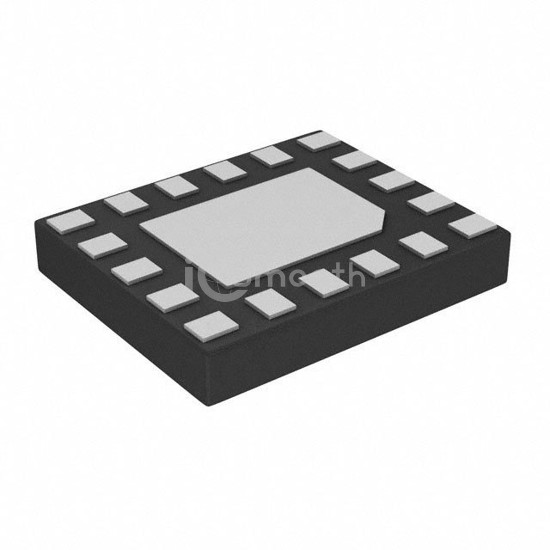

Name: PTN36043ABXY
Brand: NXP USA Inc.
SKU: PTN36043ABXY
Price: 2.24 USD
Availability: InStock

REF: PTN36043ABXY NXP USA Inc.

PTN36043ABXY

USB TYPE-C ACTIVE SWITCH SUPERSP

PTN36043ABXY is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. USB TYPE-C ACTIVE SWITCH SUPERSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 18-XFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 30,000

Tiered Pricing USD

1+ $2.2400 —

10+ $1.7180 -23%

25+ $1.7108 -24%

100+ $1.5503 -31%

250+ $1.4827 -34%

500+ $1.3306 -41%

1,000+ $1.1880 -47%

2,500+ $1.1088 -51%

5,000+ $1.0593 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	-
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.7V ~ 1.9V
Voltage - Supply, Dual (V±)	1.7V ~ 1.9V
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	6µA
Crosstalk	-50dB @ 2.5GHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	18-XFQFN Exposed Pad
Supplier Device Package	18-X2QFN (2.4x2)
