Name: PSMN8R5-108ESQ
Brand: NXP USA Inc.
SKU: PSMN8R5-108ESQ
Availability: InStock

REF: PSMN8R5-108ESQ NXP USA Inc.

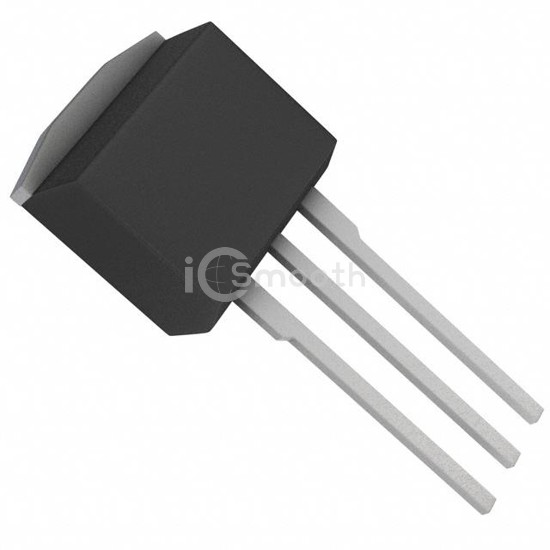

PSMN8R5-108ESQ

MOSFET N-CH 108V 100A I2PAK

PSMN8R5-108ESQ is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 108V 100A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Request a Quote

In Stock: 2,880

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	108 V
Current - Continuous Drain (Id) @ 25°C	100A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	111 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5512 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	263W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
