Name: PSMN004-55W,127
Brand: NXP USA Inc.
SKU: PSMN004-55W,127
Availability: InStock

REF: PSMN004-55W,127 NXP USA Inc.

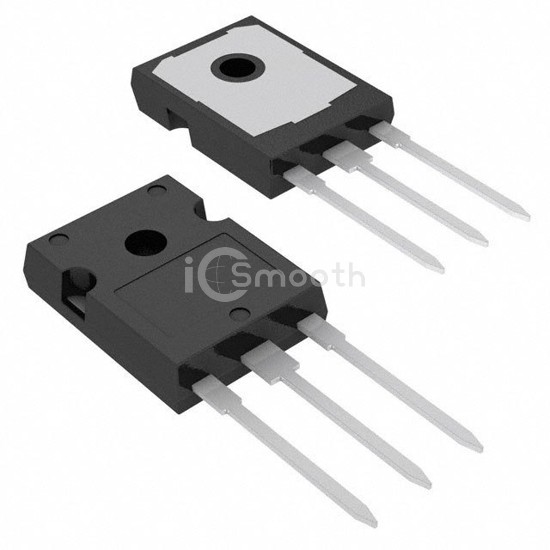

PSMN004-55W,127

MOSFET N-CH 55V 100A TO247-3

PSMN004-55W,127 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 55V 100A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 2,978

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	226 nC @ 5 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	13000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
