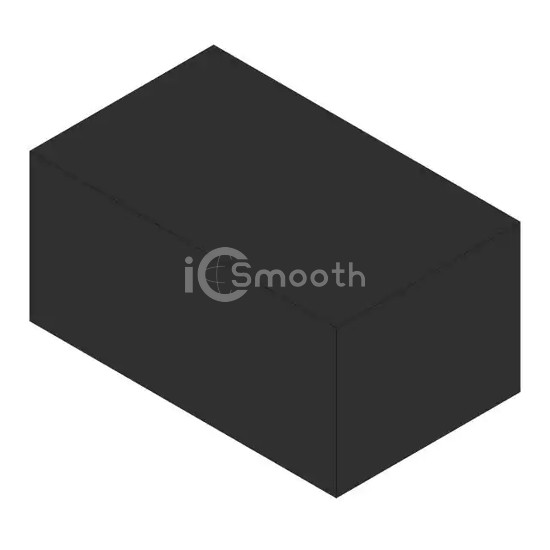

Name: PMZB790SN,315
Brand: NXP USA Inc.
SKU: PMZB790SN,315
Price: 0.09 USD
Availability: InStock

REF: PMZB790SN,315 NXP USA Inc.

PMZB790SN,315

MOSFET N-CH 60V 650MA DFN1006B-3

PMZB790SN,315 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 60V 650MA DFN1006B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 178,722

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	650mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	940mOhm @ 300mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.37 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	35 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta), 2.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006B-3
Package / Case	SC-101, SOT-883
