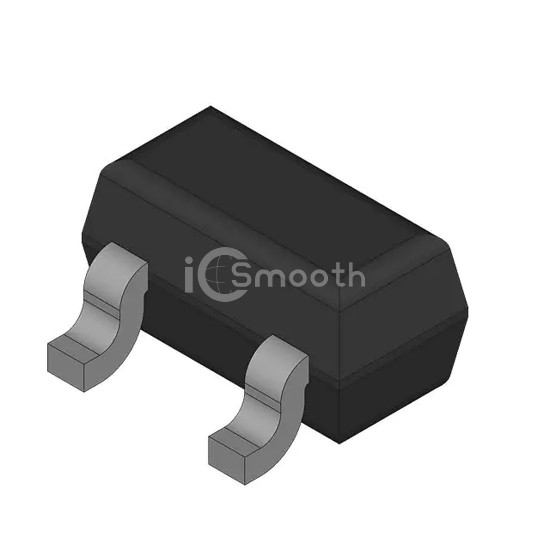

Name: PMR780SN115
Brand: NXP USA Inc.
SKU: PMR780SN115
Availability: InStock

REF: PMR780SN115 NXP USA Inc.

PMR780SN115

SMALL SIGNAL N-CHANNEL MOSFET

PMR780SN115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. SMALL SIGNAL N-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 6,056

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	550mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	920mOhm @ 300mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.05 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	23 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	530mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75
Package / Case	SC-75, SOT-416
