Name: PMR290UNE,115
Brand: NXP USA Inc.
SKU: PMR290UNE,115
Availability: InStock

REF: PMR290UNE,115 NXP USA Inc.

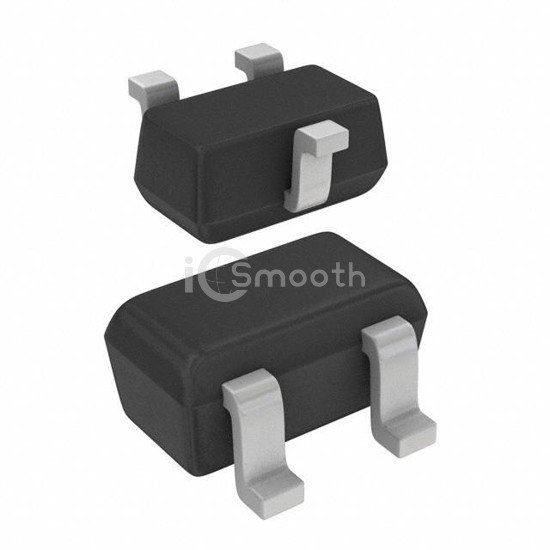

PMR290UNE,115

MOSFET N-CH 20V 700MA SC75

PMR290UNE,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 20V 700MA SC75. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Request a Quote

In Stock: 5,879

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.68 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	83 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	250mW (Ta), 770mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75
Package / Case	SC-75, SOT-416
