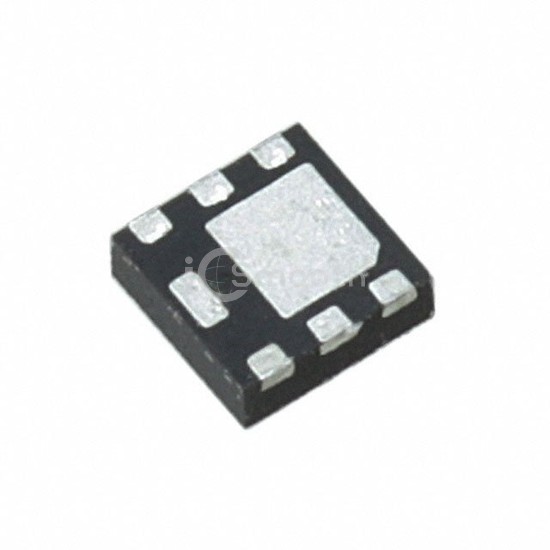

Name: PMPB12UN,115
Brand: NXP USA Inc.
SKU: PMPB12UN,115
Price: 0.22 USD
Availability: InStock

REF: PMPB12UN,115 NXP USA Inc.

PMPB12UN,115

MOSFET N-CH 20V 7.9A 6DFN

PMPB12UN,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 20V 7.9A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Request a Quote

In Stock: 65,963

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	7.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	18mOhm @ 7.9A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	886 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta), 12.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN2020MD (2x2)
Package / Case	6-UDFN Exposed Pad
