Name: PMN50UPE,115
Brand: NXP USA Inc.
SKU: PMN50UPE,115
Price: 0.17 USD
Availability: InStock

REF: PMN50UPE,115 NXP USA Inc.

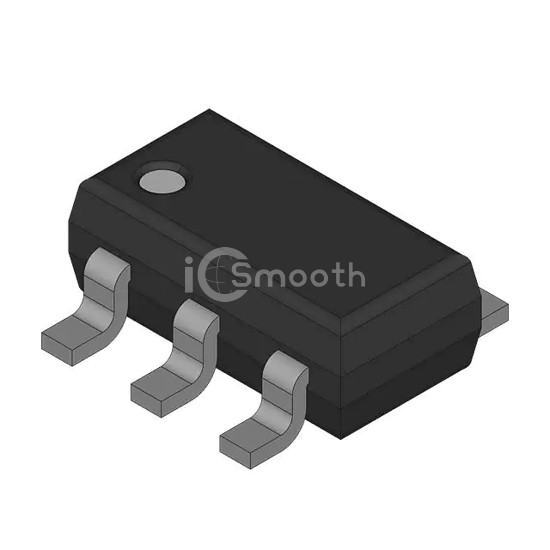

PMN50UPE,115

MOSFET P-CH 20V 3.6A 6TSOP

PMN50UPE,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET P-CH 20V 3.6A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 2,238

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	66mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.7 nC @ 10 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	24 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	510mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
