Name: PMN48XPA115
Brand: NXP USA Inc.
SKU: PMN48XPA115
Availability: InStock

REF: PMN48XPA115 NXP USA Inc.

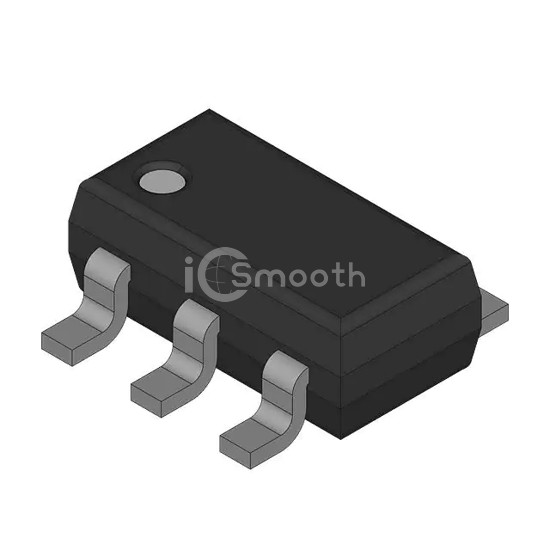

PMN48XPA115

P-CHANNEL MOSFET

PMN48XPA115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 8,871

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	55mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1000 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	530mW (Ta), 6.25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
