Name: PMN45EN,135
Brand: NXP USA Inc.
SKU: PMN45EN,135
Price: 0.17 USD
Availability: InStock

REF: PMN45EN,135 NXP USA Inc.

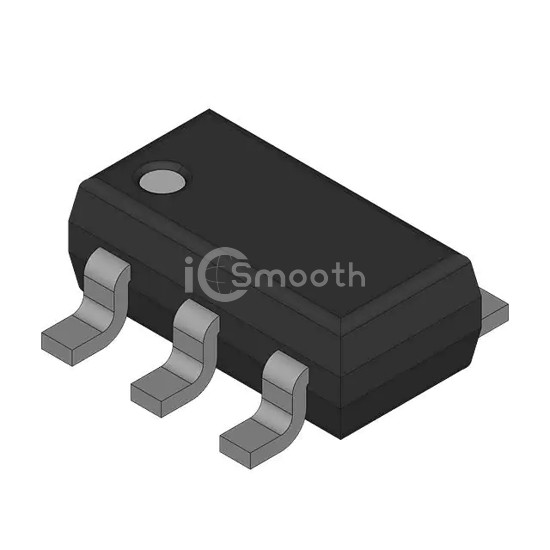

PMN45EN,135

MOSFET N-CH 30V 5.2A 6TSOP

PMN45EN,135 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 30V 5.2A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 450,515

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	40mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.1 nC @ 4.5 V

Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	495 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.75W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
