Name: PMN27UP,115-NXP
Brand: NXP USA Inc.
SKU: PMN27UP,115-NXP
Availability: InStock

REF: PMN27UP,115-NXP NXP USA Inc.

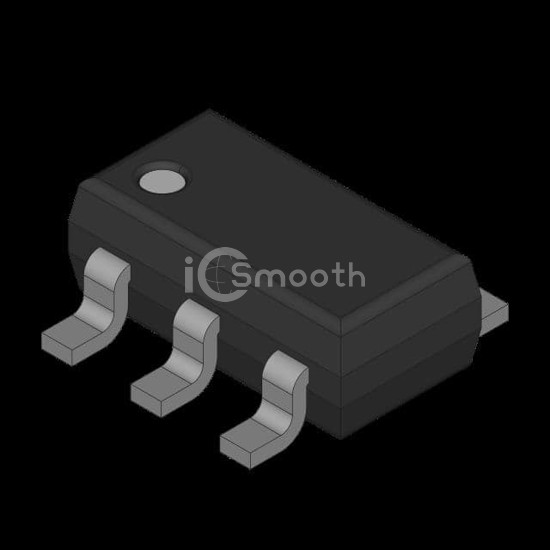

PMN27UP,115-NXP

MOSFET P-CH 20V 5.7A 6TSOP

PMN27UP,115-NXP is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET P-CH 20V 5.7A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 2,314

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	32mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2340 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	540mW (Ta), 6.25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
