PMN15UN115

In Stock: 9,000

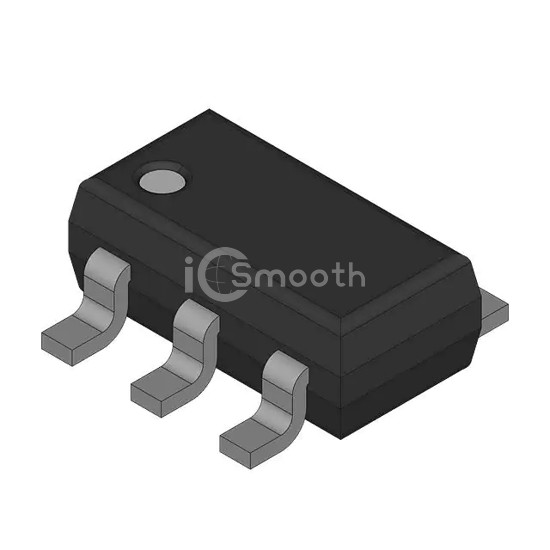

PMN15UN115 - NXP USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PMN15UN115 NXP USA Inc.
PMN15UN115

NXP USA Inc.

SMALL SIGNAL FET

PMN15UN115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. SMALL SIGNAL FET. Key specifications: mounting type Surface Mount, package / case SC-74, SOT-457.

Request a Quote

In Stock: 9,000

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageSC-74
Package / CaseSC-74, SOT-457
