Name: PMFPB6532UP,115
Brand: NXP USA Inc.
SKU: PMFPB6532UP,115
Availability: InStock

REF: PMFPB6532UP,115 NXP USA Inc.

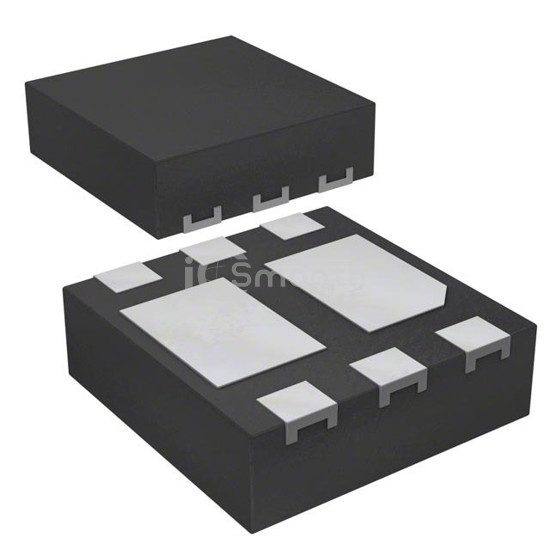

PMFPB6532UP,115

MOSFET P-CH 20V 3.5A DFN2020-6

PMFPB6532UP,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET P-CH 20V 3.5A DFN2020-6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,433

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	70mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	380 pF @ 10 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	520mW (Ta), 8.3W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-HUSON (2x2)
Package / Case	6-UDFN Exposed Pad
