Name: PIP3102-R,118
Brand: NXP USA Inc.
SKU: PIP3102-R,118
Availability: InStock

REF: PIP3102-R,118 NXP USA Inc.

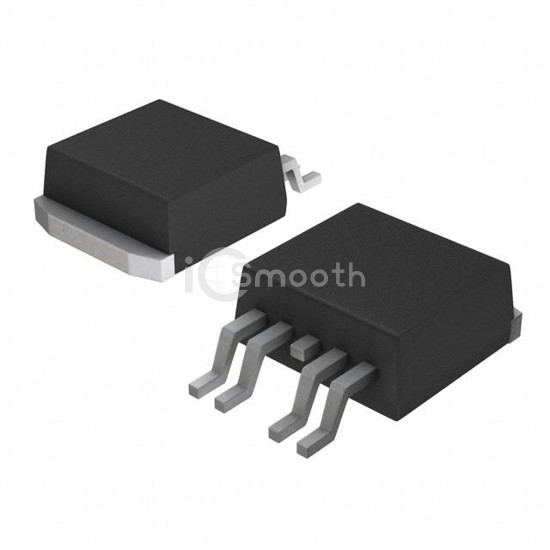

PIP3102-R,118

IC PWR DRIVER N-CHAN 1:1 SOT426

PIP3102-R,118 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR DRIVER N-CHAN 1:1 SOT426. Key specifications: mounting type Surface Mount, voltage - supply (vcc/vdd) Not Required, package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB, current - output (max) 30A.

Datasheet Request a Quote

In Stock: 3,435

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	50V (Max)
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	30A
Rds On (Typ)	21mOhm
Input Type	Non-Inverting
Features	Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
